Thermal insulating glass can keep unwanted heat or cold out and siginficantly resulting in lower cooling and heating bill. The thermal insulating performance is measured by parameter of U-Value. The energy will be transfered by air temperature difference between interior and exterior of the building, and the U-Value just describes how much energy will be transfered per unit time, per unit surface square of glass, and temperature different degree. The lower the U-Value, the less energy will be transfer.

We are available with various configuration of thermal insulating glazing to meet the project specification and local building code, such as double pane insulated glass unit with aluminum air spacer, tripe pane insulated glass unit with aluminum air space, Low-E coating is optional as per requirement to improve the thermal insulating performance.

For the thermal performance of aluminum window in United States, the U value is 0.27 or lower in cold climate area and 0.40 or lower in warmer area following the recommendation of international Energy Star. U value is a measurement to describe how much the heat transfer through a window with the measurement unit of British Thermal Units per square foot per Fahrenheit degree (BTU/hr.ft2. F).

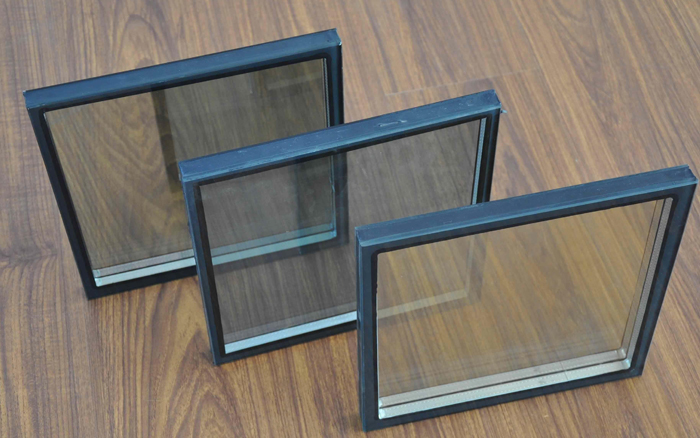

Architectural Thermal Insulating Glass, Double Pane by Clear Tempered Glass and Aluminum Air Spacer
