Fixed Aluminum Glass Window and PTAC Air Venting Louver
- Product No.：2024112174849
Fixed Aluminum Glass Window and PTAC Air Venting Louver for Hotel Project
Fixed window, also known as picture window, is a type of non-operable architectural window, and can not be open to enhance the property security level and allow for a maximum window view. It can also have various grid options such as simulated divided lite or simulated divided lite for decorative purpose.
Fixed window (or picture window) can combine with other opening to make the window unit more functional, the common combination includes fixed window over hopper window, fixed window over awning window, fixed down over casement window, casement, fixed and casement window series
Configuration:

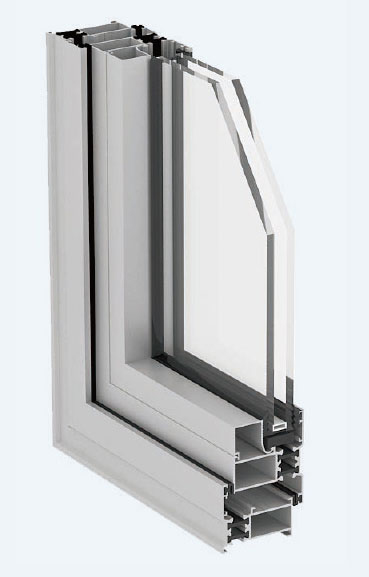

Thermal break aluminum alloy 6063 T5 frame profile
Insulated Glass Unit (IGU) to improve the thermal and acoustical performance
Extruded aluminum anodized blade stationary thinline PTAC louvers to intake, exhaust and air venting application, insulated or non insulated blank-off available. The thinline extruded aluminum architectural louver is mechanically fastened, and offered in a variety of frame depth, 42 degree or 45 degree blade angle and spacing
Extruded Aluminum Alloy 6063-T5 main frame and sash frame, square glass stop, PA66 thermal break strip and rubber gasket
Double pane insulated glass unit (IGU) for energy saving performance and acoustical performance, architectural safe tempered clear glass, customized configuration available such as visual light transmittance (VLT), solar heat gain coefficient (SHGC), low E coating to meet the requirement of project and local building code

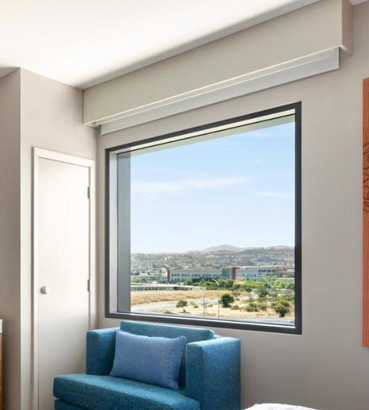

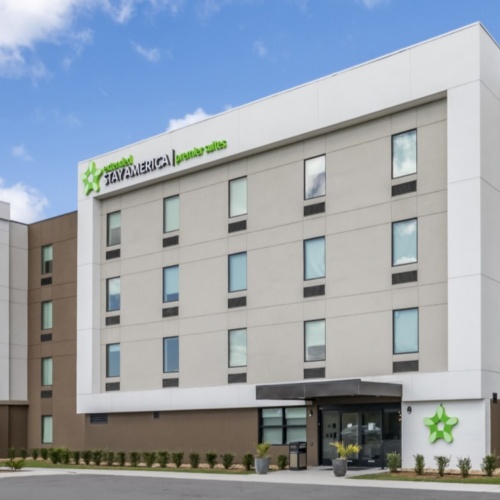

Fixed window is widely applied in hotel guestroom. Many hotel franchised brand such as Hampton Inn and Suites has an requirement to have a fixed window in their guestroom, and non slider window and casment window is allowed. The thermal transmittance of the glazing, which is measured by U factor (Btu/hr.ft.F), is custom made in accordance with NFRC 100. Since each window has its own specific product configuration required by the project, the actual Value will vary for each project and products.
Fixed window, also known as picture window, is a type of non-operable architectural window, and can not be open to enhance the property security level and allow for a maximum window view. It can also have various grid options such as simulated divided lite or simulated divided lite for decorative purpose.
Fixed window (or picture window) can combine with other opening to make the window unit more functional, the common combination includes fixed window over hopper window, fixed window over awning window, fixed down over casement window, casement, fixed and casement window series
Configuration:
Thermal break aluminum alloy 6063 T5 frame profile
Insulated Glass Unit (IGU) to improve the thermal and acoustical performance
Extruded aluminum anodized blade stationary thinline PTAC louvers to intake, exhaust and air venting application, insulated or non insulated blank-off available. The thinline extruded aluminum architectural louver is mechanically fastened, and offered in a variety of frame depth, 42 degree or 45 degree blade angle and spacing
Extruded Aluminum Alloy 6063-T5 main frame and sash frame, square glass stop, PA66 thermal break strip and rubber gasket
Double pane insulated glass unit (IGU) for energy saving performance and acoustical performance, architectural safe tempered clear glass, customized configuration available such as visual light transmittance (VLT), solar heat gain coefficient (SHGC), low E coating to meet the requirement of project and local building code
Fixed window is widely applied in hotel guestroom. Many hotel franchised brand such as Hampton Inn and Suites has an requirement to have a fixed window in their guestroom, and non slider window and casment window is allowed. The thermal transmittance of the glazing, which is measured by U factor (Btu/hr.ft.F), is custom made in accordance with NFRC 100. Since each window has its own specific product configuration required by the project, the actual Value will vary for each project and products.
